MMX/ MMR Baffled Sump Plate N55 - F20, F22, F30, F32 (inc BMW M135i, M235i)

It’s well documented that the N55 engine found in the M135i I M235i I 335i I 435i is prone to oil starvation issues when pushed hard on the road and even more so when used on track.

If you're ever planning to use your car on track, or even particularly hard road driving, this really is an essential upgrade. Total engine failure is a very real possibility if not!

The problem is especially pronounced under hard braking, when the oil pools at the front of the oil pan under the lateral g-force, allowing the pick-up to run dry. Even a fraction of a second of no oil feed can be enough to do lasting damage to your engine, any longer and it's almost certain to lead to engine failure. And that's where this Baffled Sump comes in.

The MMR/ MMX Performance sump baffle has been extensively engineered from the ground-up to provide effective oil control, reducing surge and maintaining a more constant oil pressure; it's the ultimate bolt-in solution available to protect your engine's longevity.

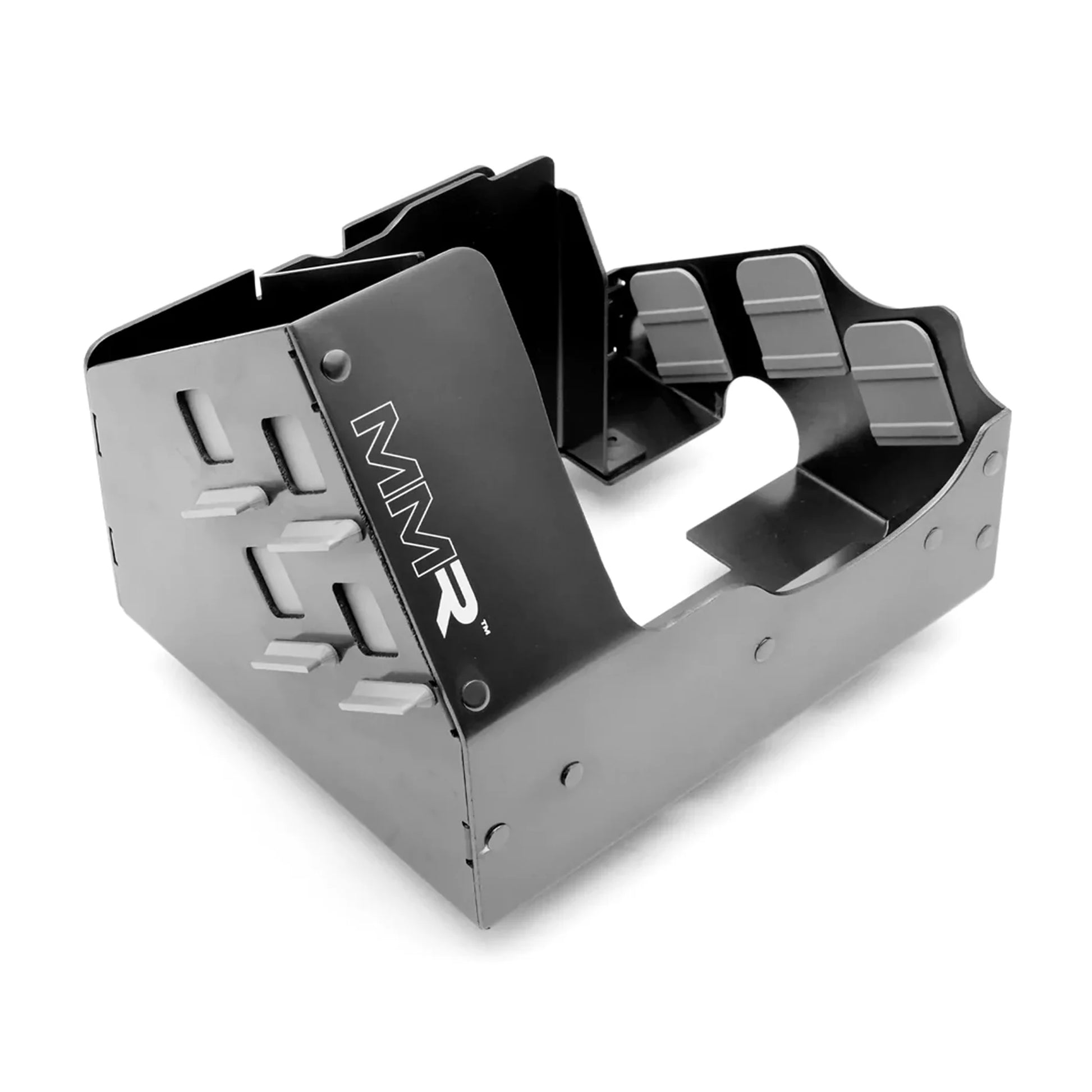

Featuring a total of 7 one-way oil control flaps and specific baffling, the T-6061 anodized MMR sump baffle has been tested over thousands of miles of track and road use where the data we collected has proven it's effectiveness, plus highlighted that it's typically most susceptible without a baffle under hard braking.

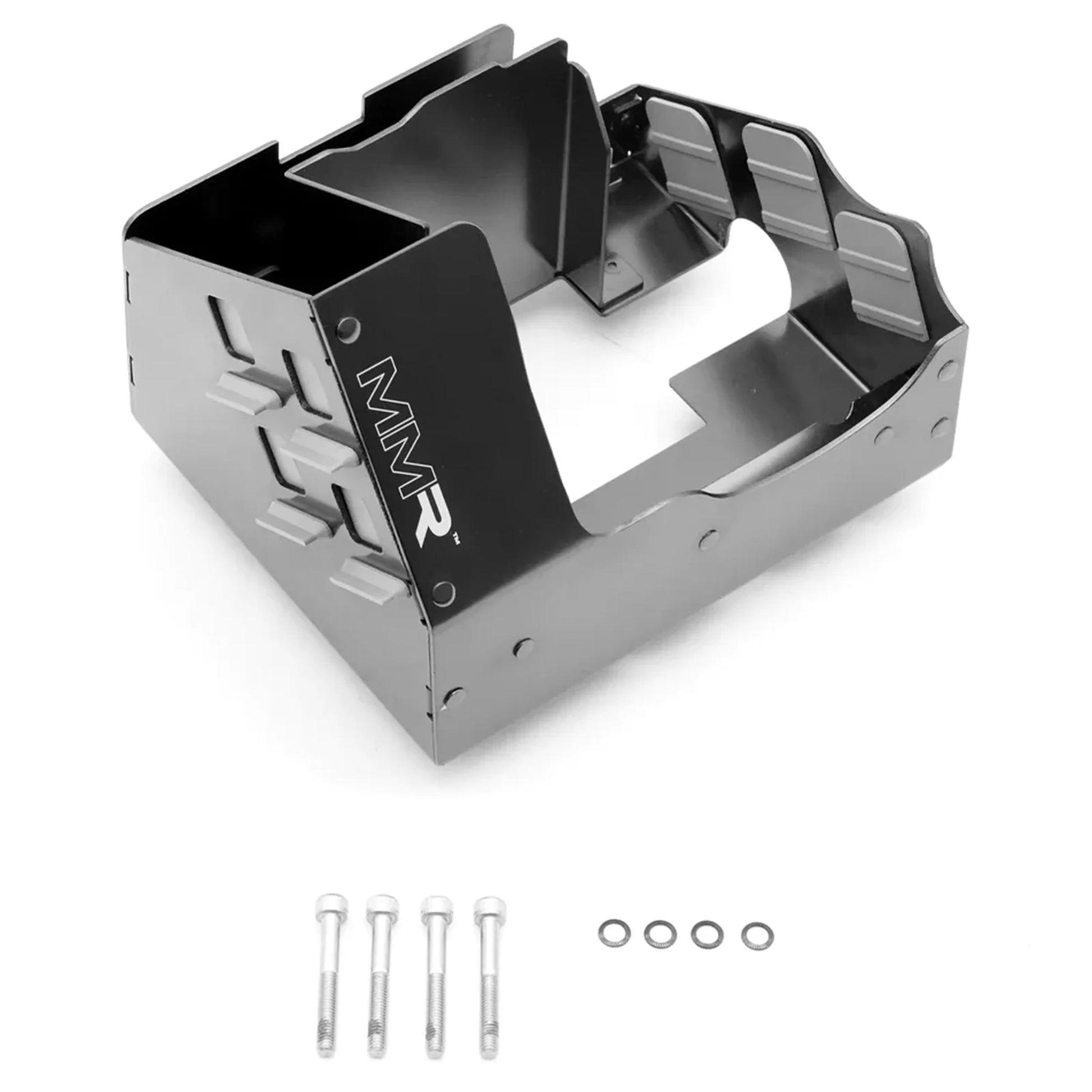

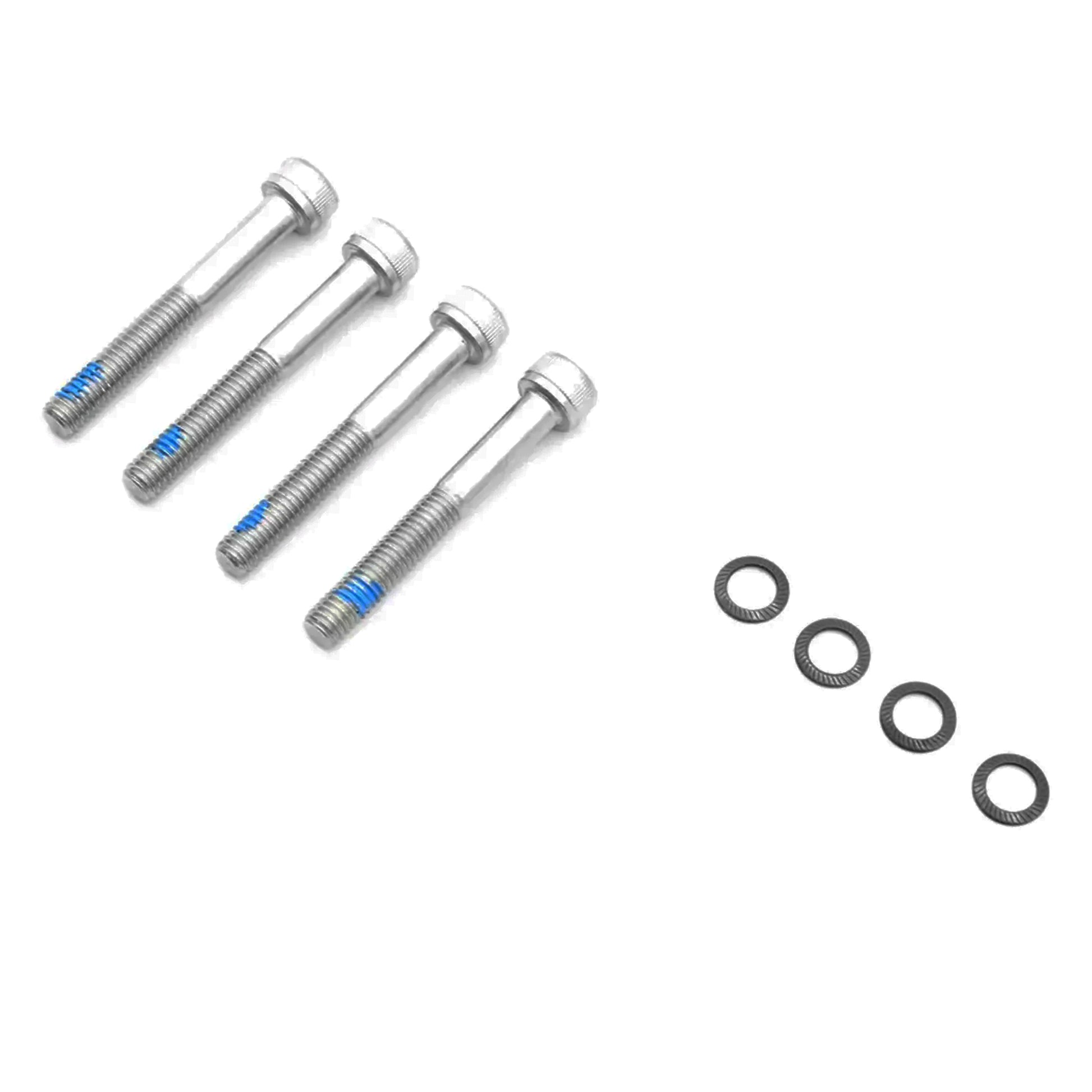

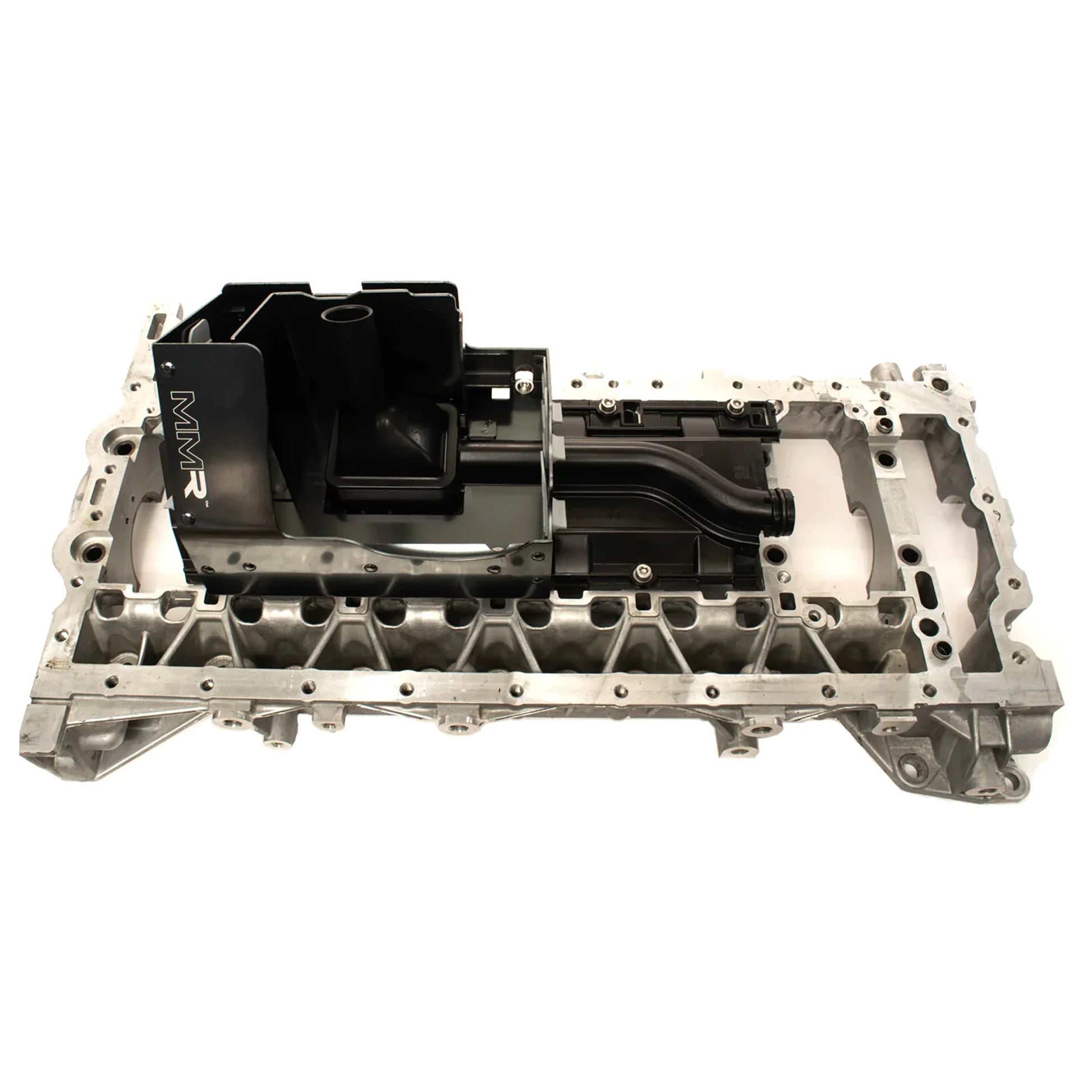

Unlike other solutions available that require a plate to be welded in, the MMR solution is simply bolted into place making the addition of the baffle considerably easier and more accessible to install.

Note: For reference, normal idling pressure when warm is 1.5 bar.
