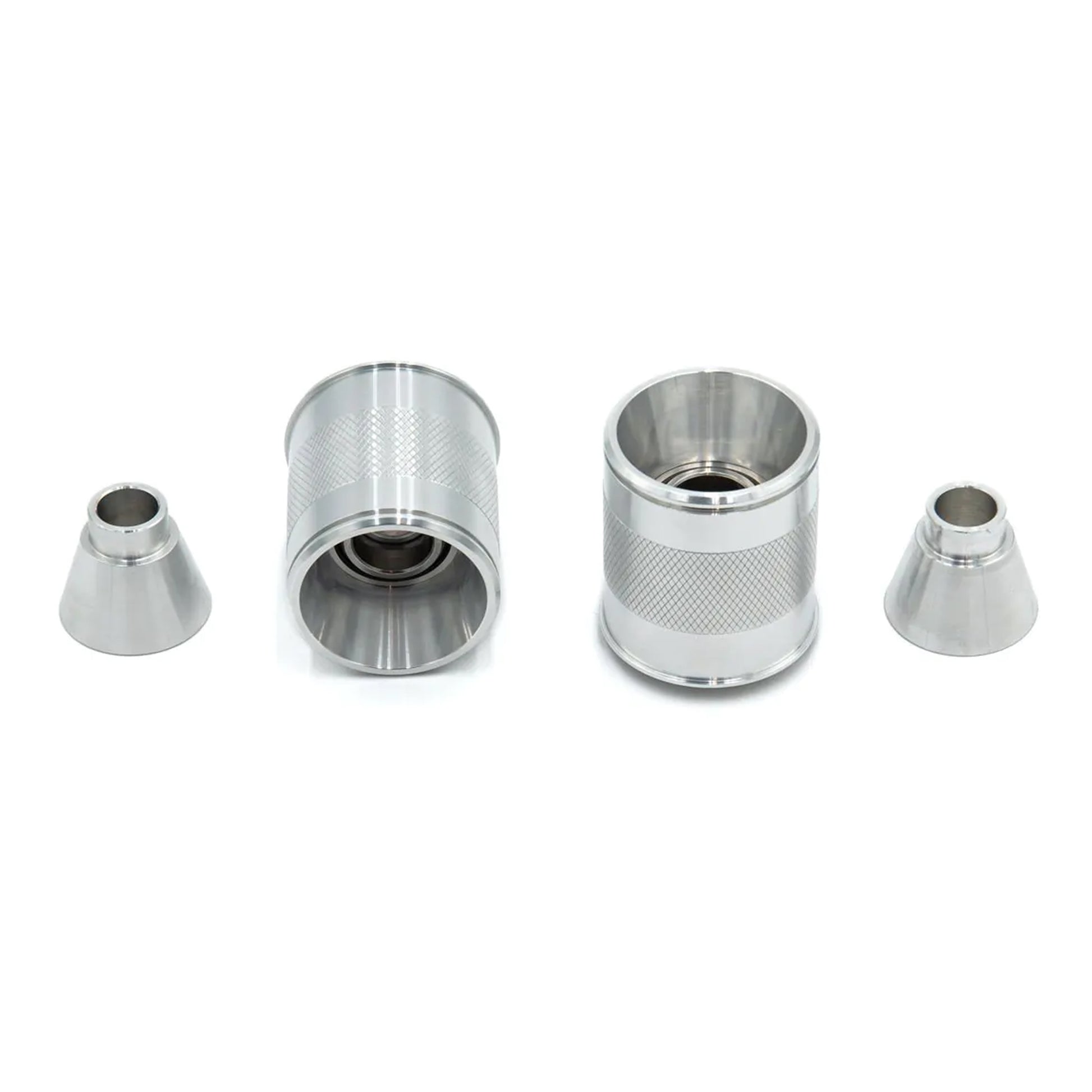

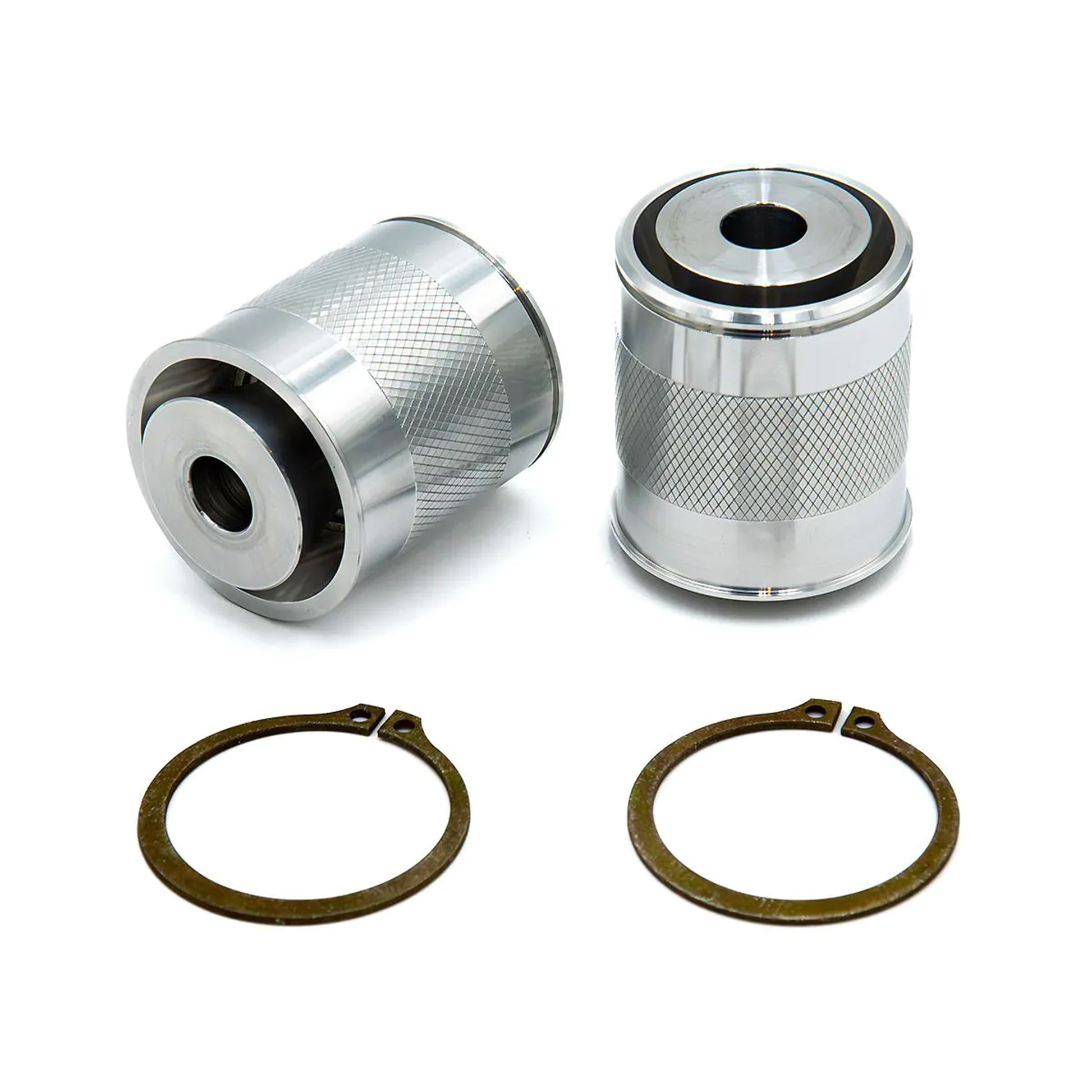

SPL Rear Lower Control Arm Inner Bushing - BMW E9X, E8X & F8X

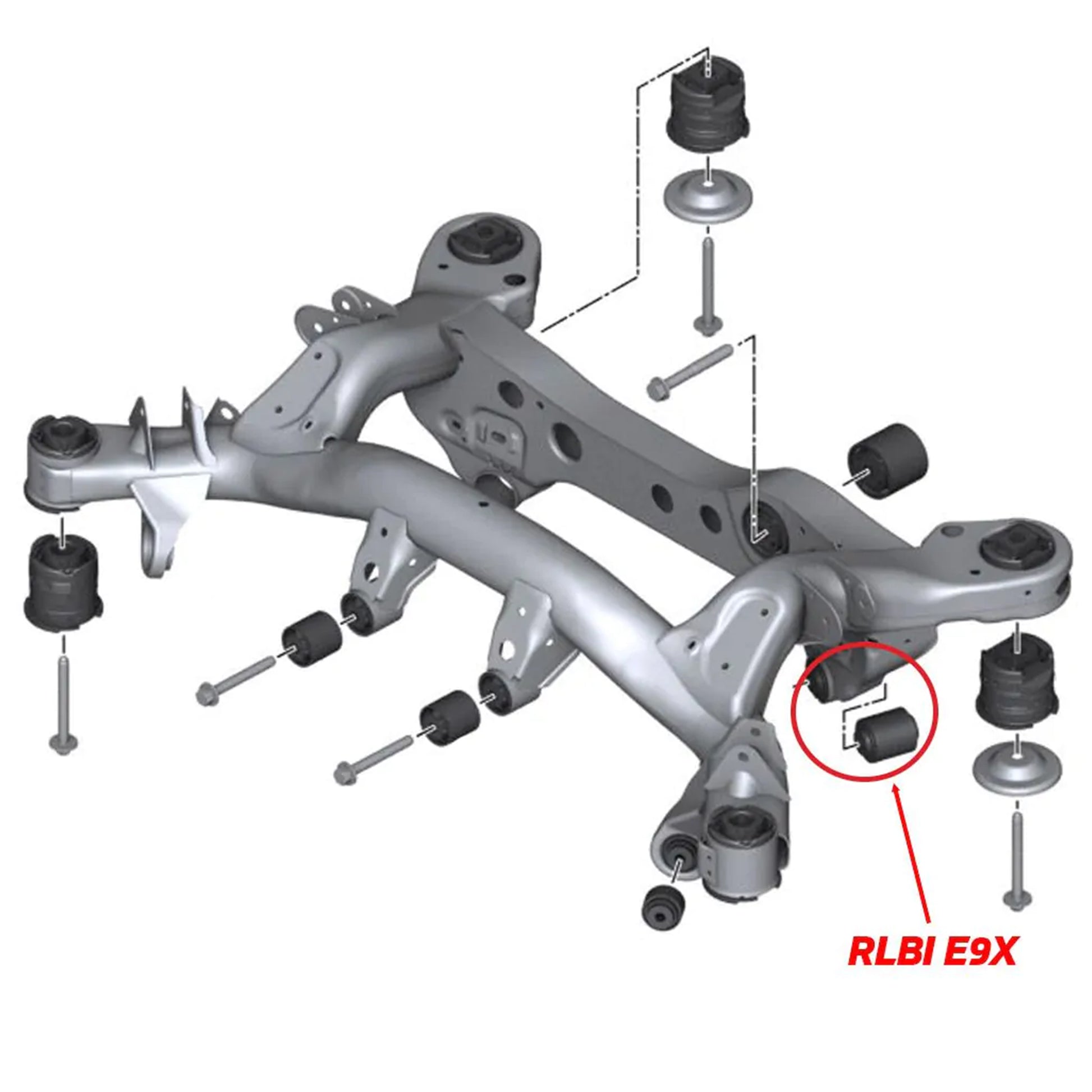

These rear lower control arm inner bushings replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.

Benefits

• Improved Rear Cornering Grip
• Eliminates OEM Bushing Deflection and Binding
• Precise Dynamic Geometry, Stability, and Handling
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 aluminum bearing shells and spacers
• FK PTFE-lined spherical bearings (F1 spec, self-cleaning)

Sold as a pair.

Confirmed Applications

2006 - 2013 E80, E82, E82M (1-Series, 1-Series M)
2006 - 2013 E90, E91, E92, E93 (3-Series, M3)
2014 - 2021 F80, F82, F83, F87 (M2, M3, M4)

Replaces OEM Part Number

33326770829
